Pro Bass Speaker Placement & Bass Management for Clubs & DJs
There is a moment on every dancefloor when the bass drops and the room transforms. Bodies move as one and the music takes over. That moment is not an accident. It is the product of careful engineering, considered subwoofer placement, and intelligent bass management. Get it right and your venue becomes the one people talk about. Get it wrong and the same track that thrills one room will leave another feeling muddy and forgettable.
This guide is built for venue owners, club managers, event promoters, and audio engineers who want their low end to land with authority. As Australia's official Funktion-One distributor since 2002, Absolute Audio has spent more than two decades helping venues across Melbourne, Sydney, Brisbane, and the wider Eastern Seaboard turn raw acoustic spaces into world-class sonic environments.
Andy Simpson's 20-plus years of hands-on experience with these systems informs everything we share here. You will learn how to choose the right bass speaker for your room, position subwoofers for tight and even coverage, and use bass management to deliver impact without mud.
Why Bass Goes Wrong in Clubs and Venues
Bass is the most physically felt part of any sound system, and also the most unforgiving. The same frequencies that create excitement on the dancefloor can turn into a smeared, boomy mess when handled poorly. The culprit is rarely the music. It is almost always the room, the placement, or the gear.
Low frequencies behave differently from mid and high frequencies. They radiate in nearly all directions, wrap around obstacles, and interact powerfully with walls, floors, and ceilings. When two bass waves arrive at the same point out of phase, they cancel each other. When they arrive in phase, they create hot spots. The result is a dancefloor where some patches feel powerful and others feel hollow.
A poorly designed sound system creates real commercial damage. Audiences feel the difference even when they cannot name it. They leave earlier, drink less, and tell their friends the room sounded tired. DJs and touring artists notice immediately, and word travels fast in the booking community. According to Sound on Sound, uncontrolled low-frequency dispersion is one of the most common and expensive problems facing live and installed audio.
Australian venues face a particular set of challenges. Heritage buildings with hard reflective surfaces, converted warehouses with parallel walls, outdoor festivals battling council noise limits, and intimate clubs where every square metre is precious. Each space demands a different approach to the bass range, and a generic answer will not deliver the listening experience your audience expects.
What venues actually need is more than raw power. They need a loud speaker system that combines clarity, evenness, reliability, and musicality. They need bass that feels controlled even at its most physical, and a sound speaker arrangement that holds its character whether the room is empty during soundcheck or packed at peak.
Understanding the Room Before You Place a Single Sub
Every venue has a personality set by its dimensions, surfaces, and structure. Before any subwoofer touches the floor, the room itself must be understood.
Room Modes and Standing Waves
Room modes are resonant frequencies created by the relationship between a room's dimensions and the wavelengths of bass notes. At certain frequencies, the room amplifies energy. At others, it cancels it. The result is uneven bass response across the floor, with some spots booming and others sounding thin. As GIK Acoustics explains, this modal behaviour is most pronounced below 300 Hz, exactly the range where dance music lives.
Boundaries, Corners, and Surfaces
Walls, floors, and ceilings act as acoustic mirrors at low frequencies. Placing a subwoofer in a corner can increase its output by several decibels, but it also excites every nearby room mode aggressively. Hard parallel surfaces, common in warehouse clubs and brick-built venues, create the strongest standing waves. A thoughtful sound system design works with the room rather than fighting it.
Strategic Subwoofer Placement for Tight, Even Bass
Once you understand the room, placement becomes the most powerful tool you have. The right arrangement can transform a venue without adding a single watt of amplification.
Centre Cluster Versus Distributed Arrays
A centred bass cluster, with multiple subwoofers stacked or aligned together, produces coherent low end with strong physical impact at the dancefloor. It is the classic club configuration and works beautifully when the room geometry supports it.
A distributed array, where subs are spaced across the front of the stage or around the room, reduces modal hot spots and delivers more even coverage. The right choice depends on dancefloor shape, ceiling height, and where the DJ booth sits.
Cardioid and End-Fire Arrays
Cardioid subwoofer arrays use the interaction between multiple bass cabinets to direct energy forward and cancel it behind the system. This is invaluable for keeping bass off the stage, away from the DJ booth, and out of neighbouring rooms. Front of House Magazine outlines a clean four-step approach using delay and polarity reversal to achieve directional bass control with everyday DSP tools.
End-fire arrays, where subs are spaced in line and delayed sequentially, push bass strongly forward and reduce rear radiation. Both techniques are essential vocabulary for any modern bass speaker deployment in dense urban venues where neighbour complaints and stage bleed can shut a night down. Stacking subs vertically also couples their output and lifts efficiency, which is why ground-stacked clusters remain the standard in club installations.
Bass Management: Crossovers, DSP, and Phase Alignment
Even the finest cabinets will sound poor if the electronics behind them are wrong. Bass management is the discipline of making sure every part of the spectrum arrives at the listener cleanly and at the correct moment.
Crossover Points and Slopes
The crossover between subs and tops decides where bass ends and mid-bass begins. Set it too high and the subs become localisable, dragging the image to the floor. Set it too low and you create a hole in the kick drum. Funktion-One systems are designed for clean, low-distortion handover, and the manufacturer's philosophy avoids corrective EQ in favour of native response.
Time Alignment and Phase
If your subs and tops are not time-aligned, the bass will smear and lose punch. Even small misalignments of a few milliseconds blur transients and cost you the snap that makes kick drums and basslines physical. Proper alignment uses measurement tools to ensure every cabinet arrives in phase at the listening position.
Headroom and Protection
A well-managed system runs comfortably below its limits, never into them. Funktion-One's electronics range includes amplifiers and DSP designed specifically to keep the system within its sweet spot, protecting drivers while delivering the maximum useful output across the bass range.
Choosing the Right Funktion-One Bass Speaker for Your Venue
Absolute Audio offers the full Funktion-One catalogue, and each range serves a different application. The right choice begins with the room and the music, not the spec sheet.

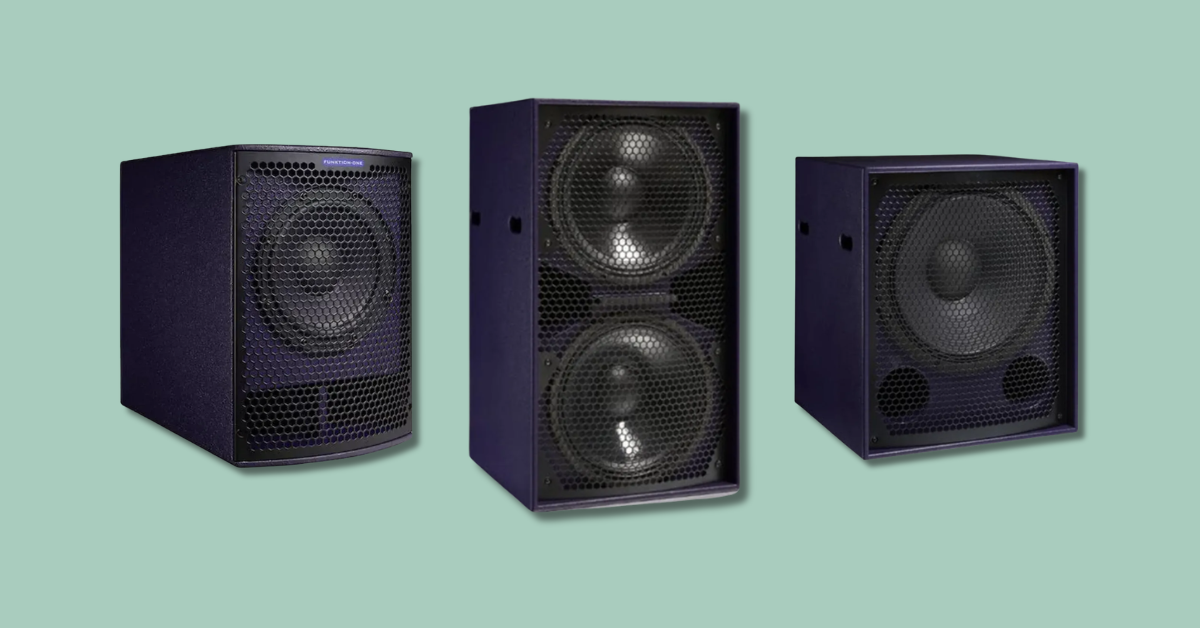

Bass Reflex Range
The BR series, including the BR115, BR118, BR218, BR121, BR221, and BR132, suits indoor venues and smaller outdoor events where Funktion-One's signature bass sound is required at close range. These cabinets pair beautifully with Resolution and Evolution tops and form the backbone of most club installations.
Horn-Loaded Bass
The F-series horn-loaded enclosures, including the F215 MkII, F218 MkII, F221, and the formidable F132, deliver tight, punchy, well-defined bass at the highest output levels. Horn loading offers superior efficiency, controlled directivity, and the kind of physical impact that defines a true festival or large-format club sound system.

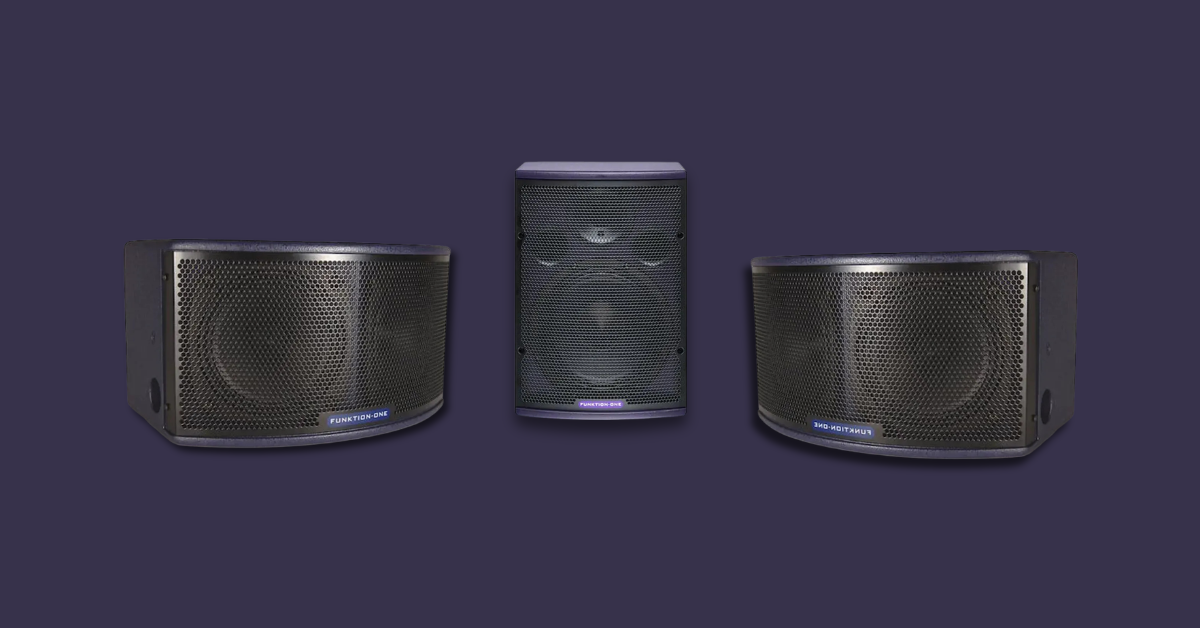

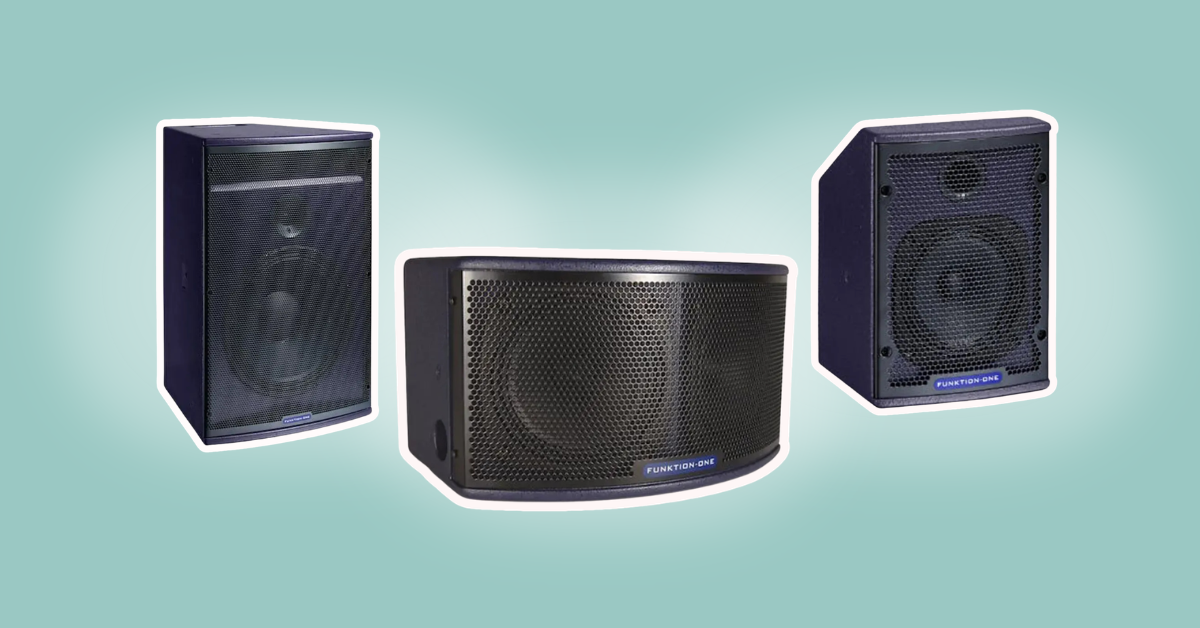

Compact and Infrabass Solutions
For smaller venues, the SB8, SB10, MB112, and MB212 offer remarkable performance from compact enclosures. The MB212 carries Funktion-One's patented infrabass technology, delivering extraordinary low-frequency extension where space is limited. These are the secret weapons for intimate clubs, restaurants, and high-end residential spaces that demand quality without compromise.
Across every range, the unifying principle is Funktion-One's commitment to highest-quality performance without corrective EQ. The cabinets are designed to sound right by virtue of their engineering, not patched into shape by signal processing.
The Real Cost of the Wrong Audio Choice
Choosing the wrong sound system costs far more than the price difference. It costs bookings, reviews, repeat visits, and reputation. A muddy, fatiguing room sends people home early and stops them coming back. Touring artists with technical riders will refuse to play venues that cannot deliver, and word spreads quickly through the booking community.
Hidden costs accumulate quietly. Constant repairs on under-engineered cabinets, replacement drivers after a single big weekend, and power amplifiers running hot because the loud speaker system is being pushed past its limits. None of this appears in the original purchase price but all of it is paid in the years that follow. Venues that invest in elite audio see the opposite curve: the system performs night after night without drama, artists ask to come back, and the return is measured in years and decades.
Best Practices for Australian Venues
Before you commit to a sound speaker system, work through a clear checklist with your supplier and installer:
- Have the room measured properly, including ceiling height, surface materials, and any structural features that affect bass behaviour.
- Define the music programme realistically. A house and techno room has different bass demands from a live band venue or a theatre.
- Plan for peak conditions, not average ones. The system should sound effortless at full capacity, not stressed.
- Insist on cabinets designed without reliance on corrective EQ. If a system needs heavy processing to sound right, it is the wrong system.
- Ask about installer experience. Funktion-One systems reward installers who know them well, and Absolute Audio works with a trusted national network.
- Plan for noise compliance from the start. Cardioid arrays and careful placement protect your licence and your neighbours.
Australian climate also matters. Outdoor events and coastal venues need cabinets and electronics that handle humidity, salt air, and temperature swings, and Funktion-One's professional-grade construction is built for these conditions.
How Absolute Audio Works With Your Venue
Every project begins with a conversation. Absolute Audio's approach is consultative, not transactional. The team assesses your venue, your programme, and your goals, then designs a system that fits the room rather than fitting the room to a stock package.
As Australia's exclusive Funktion-One distributor since 2002, and the official distributor for New Zealand, Absolute Audio brings deep technical knowledge backed by 20-plus years of working with these systems. Custom orders are available with a 12-week lead time, allowing for unique configurations and the iconic Funktion-One purple finish recognised on dancefloors worldwide.
Based in Melbourne, the team delivers installations across the Eastern Seaboard and works closely with experienced Funktion-One installers in every state. Whether the project is an intimate cocktail bar, a multi-room nightclub, an outdoor festival, or a theatre, the approach is the same: design for sonic excellence first, and let everything else follow.
Frequently Asked Questions
How many subwoofers does my club actually need?
It depends on dancefloor size, ceiling height, target SPL, and room acoustics. A 200-capacity club might need two to four subs in a coherent array, while a 1,000-capacity venue often requires six to twelve or more, frequently in cardioid configuration. Absolute Audio designs the system around your specific room rather than a generic rule of thumb.
What is the difference between bass reflex and horn-loaded bass?
Bass reflex cabinets are more compact and well-suited to indoor venues and smaller outdoor events. Horn-loaded designs are larger but deliver higher efficiency, tighter transient response, and superior directivity. For large clubs, festivals, and any venue prioritising the loudest, most defined low end, horn-loaded Funktion-One cabinets are the reference.
Can I add Funktion-One subs to my existing sound system?
In many cases yes, though the result is best when the entire signal chain is considered. Absolute Audio can assess your current rig, recommend the right cabinets, and design crossover and time-alignment settings to integrate everything cleanly.
How long does a Funktion-One installation take?
Stock items from the Australian inventory can be supplied quickly, with installation timelines depending on the scope of work. Custom orders from the Funktion-One factory typically have a 12-week lead time. Absolute Audio coordinates closely with your project schedule.
Are Funktion-One systems suitable for outdoor festivals in Australia?
Absolutely. The Evolution series is specifically engineered for large-scale outdoor sound reinforcement and meets the technical riders of leading international artists. The construction handles Australian conditions including heat, humidity, and dust.
Do Funktion-One systems need a lot of EQ to sound right?
No. Funktion-One's design philosophy deliberately avoids corrective EQ, with cabinets engineered to deliver the correct response without heavy processing. This results in lower phase distortion, cleaner transients, and the natural, musical sound the brand is known for.
What support is available after installation?
Absolute Audio provides ongoing support through its network of experienced Funktion-One installers and direct access to factory technical resources. Venues frequently run the same Funktion-One sound speaker investment for well over a decade with only routine maintenance.
Bass That Hits, Night After Night
Great bass is engineered, not stumbled into. It starts with understanding the room, continues with intelligent subwoofer placement, and is finished by careful bass management through the right electronics. When every element works together, the result is a venue that artists request and audiences return to.
If you are planning a new club, upgrading a tired sound system, designing a festival rig, or simply tired of bass that disappoints, talk to the team who have been delivering Funktion-One excellence to Australia and New Zealand since 2002. Call Absolute Audio on
0418 501 968 or email funktion-one@absoluteaudio.au to arrange a venue assessment and custom system design. Your dancefloor deserves bass that hits, every time, without the mud.
